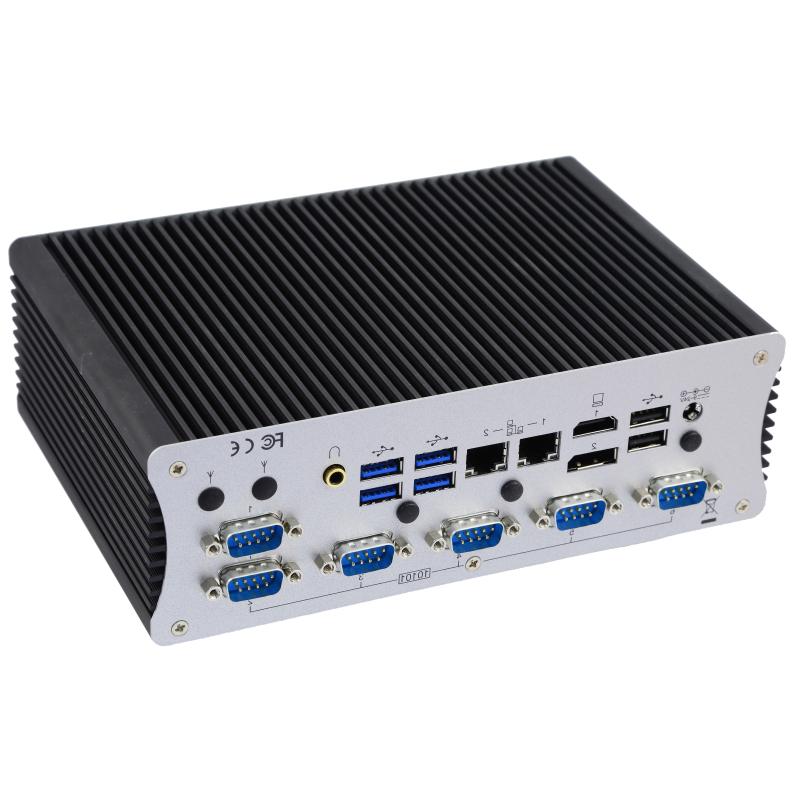

Platform image; Z7 branding may differ.Z7
Z7 Compact C2803 · Intel® Celeron® 3855U 1.6 GHz / 8 GB / 240 GB SSD
Industrial box PC
Catalogue part number: Z7-C-Y10047
Z7 Compact C2803 — industrial box pc. Listed configuration: Intel® Celeron® 3855U 1.6 GHz, 8 GB, 240 GB SSD. Fanless cooling. Input voltage: DC 9-24 V. Operating temperature: 0°C - 50°C. Mounting: VESA / Wall mount. Operating system options: Win 10 Win 10 IOT Debian Win 7. Confirm the required OS and licence in your quotation. Final configuration, included accessories and lead time are confirmed before order acceptance.
€757.74
Excl. VAT / pc
Available to order
Z7 configuration and branding prepared to order. Lead time and dispatch date confirmed with your quotation.
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Z7 |
|---|---|
| Part number | Z7-C-Y10047 |
| Condition | New |
| Catalogue part number | Z7-C-Y10047 |
| Z7 model | C2803 |
| Product type | Industrial box PC |
| Fanless | Yes |
| Processor | Intel® Celeron® 3855U 1.6 GHz |
| Installed RAM | 8 GB |
| Maximum RAM | 32 GB |
| Storage type | SSD |
| Installed storage capacity | 240 GB |
| RAID 1 | No |
| Expansion slots | MiniPCIe |
| Ethernet ports | 2 |
| Gigabit Ethernet ports | 2 |
| 2.5 Gigabit Ethernet ports | 0 |
| 10 Gigabit Ethernet ports | 0 |
| PoE ports | 0 |
| Wi-Fi | Optional |
| Display outputs | 2 |
| Display interfaces | HDMI / Displayport |
| AI accelerator option | No |
| Serial ports | 6 |
| RS-232 capable ports | 6 |
| RS-422 capable ports | 4 |
| RS-485 capable ports | 4 |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 Type-A | 0 |
| USB 3.2 Gen 2 Type-C | 0 |
| USB 3.2 Gen 2×2 Type-C | 0 |
| Digital I/O | 0 |
| Windows 11 compatibility | No |
| Operating system options | Win 10 Win 10 IOT Debian Win 7 |
| IP protection | None |
| Platform certifications | FCC |
| Power supply | External |
| Power supply rating | 65 W |
| Power connector | Barrel connector |
| Input voltage | DC 9-24 V |
| Operating temperature | 0°C - 50°C |
| Mounting | VESA / Wall mount |
| Width | 204 mm |
| Depth | 140 mm |
| Height | 67 mm |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
