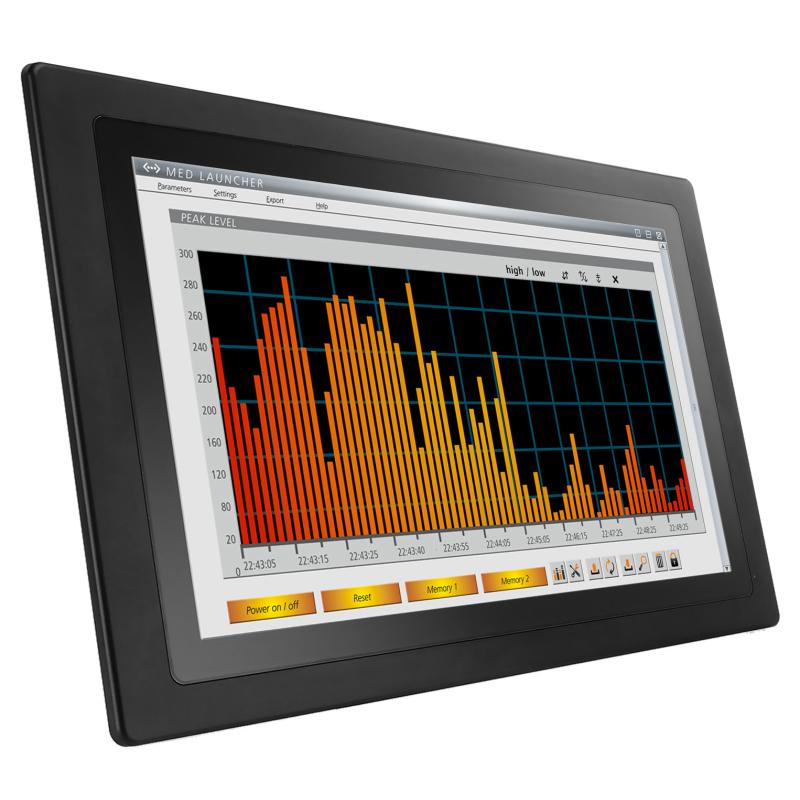

Platform image; Z7 branding may differ.Z7
Z7 Panel P2154P · Intel® Core™ i5-1245UE 10/12 3.3GHz / 16 GB / 256 GB SSD
Industrial panel PC
Catalogue part number: Z7-P-9WP21HP
Z7 Panel P2154P — industrial panel pc. Listed configuration: Intel® Core™ i5-1245UE 10/12 3.3GHz, 16 GB, 256 GB SSD. Fanless cooling. Input voltage: 12V-28V. Operating temperature: 0°C - 50°C. Operating system options: Windows. Confirm the required OS and licence in your quotation. Final configuration, included accessories and lead time are confirmed before order acceptance.
€3,210.54
Excl. VAT / pc
Available to order
Z7 configuration and branding prepared to order. Lead time and dispatch date confirmed with your quotation.
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Z7 |
|---|---|
| Part number | Z7-P-9WP21HP |
| Condition | New |
| Catalogue part number | Z7-P-9WP21HP |
| Z7 model | P2154P |
| Product type | Industrial panel PC |
| Fanless | Yes |
| Screen size | 21.5" |
| Resolution | 1920 x 1080 (16:9) |
| Touchscreen | Capacitive / PCAP / Multitouch |
| Processor | Intel® Core™ i5-1245UE 10/12 3.3GHz |
| Installed RAM | 16 GB |
| Maximum RAM | 64 GB |
| Storage type | SSD |
| Installed storage capacity | 256 GB |
| RAID 1 | No |
| Expansion slots | M.2 / SIM slot |
| Ethernet ports | 2 |
| 10/100 Ethernet ports | 0 |
| Gigabit Ethernet ports | 0 |
| 2.5 Gigabit Ethernet ports | 2 |
| 10 Gigabit Ethernet ports | 0 |
| PoE ports | 0 |
| Wi-Fi | Optional |
| Display outputs | 2 |
| Display interfaces | HDMI |
| Serial ports | 3 |
| RS-232 capable ports | 3 |
| RS-422 capable ports | 2 |
| RS-485 capable ports | 2 |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 | 0 |
| USB 3.2 Gen 2 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 2 |
| USB 3.2 Gen 2×2 Type-C | 0 |
| Additional features | Mic-in Line-out M.2 |
| Digital I/O | 0 |
| Operating system options | Windows |
| Windows 11 compatibility | Yes |
| IP protection | None |
| Front IP protection | IP66 |
| Power supply | External |
| Power supply rating | 100 W |
| Power connector | Netzstecker |
| Input voltage | 12V-28V |
| Platform certifications | No |
| Operating temperature | 0°C - 50°C |
| Installation | VESA 75 / Panel mount |
| Width | 584 mm |
| Depth | 84 mm |
| Height | 365 mm |
| Material | Stahl/Aluminium |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
