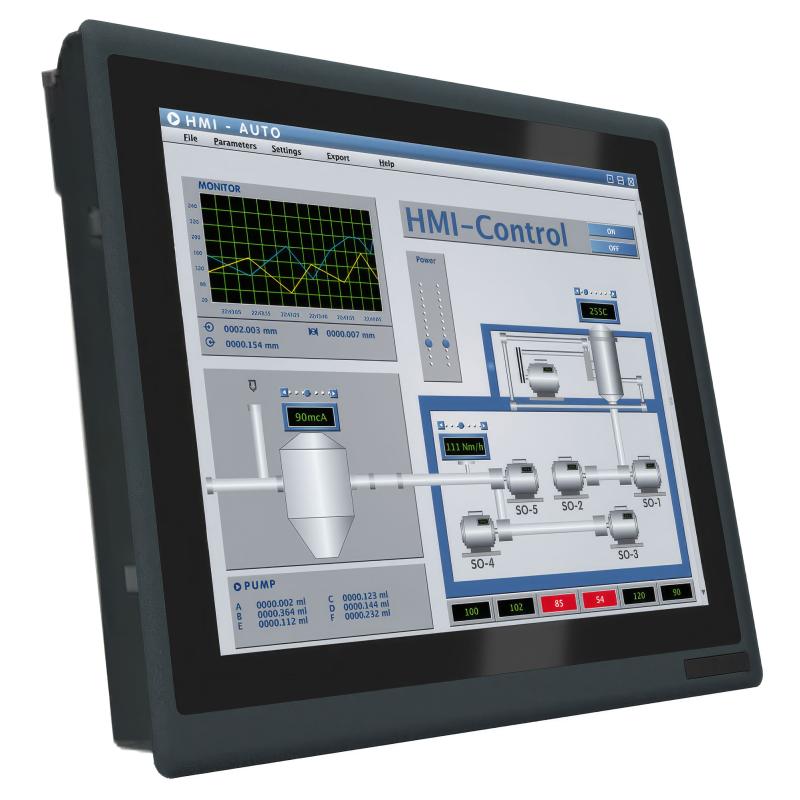

Platform image; Z7 branding may differ.Z7
Z7 Panel P1545 · Intel® Core™ i5-1135G7 4/8 2.4GHz / 16 GB / 256 GB SSD
Industrial panel PC
Catalogue part number: Z7-P-9JP1551
Z7 Panel P1545 — industrial panel pc. Listed configuration: Intel® Core™ i5-1135G7 4/8 2.4GHz, 16 GB, 256 GB SSD. Fanless cooling. Input voltage: 9V-36V DC. Operating temperature: 0°C- +50°C. Operating system options: Windows 11 / Linux. Confirm the required OS and licence in your quotation. Final configuration, included accessories and lead time are confirmed before order acceptance.
€1,677.54
Excl. VAT / pc
Available to order
Z7 configuration and branding prepared to order. Lead time and dispatch date confirmed with your quotation.
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Z7 |
|---|---|
| Part number | Z7-P-9JP1551 |
| Condition | New |
| Catalogue part number | Z7-P-9JP1551 |
| Z7 model | P1545 |
| Product type | Industrial panel PC |
| Fanless | Yes |
| Screen size | 15" |
| Resolution | 1024 x 768 (4:3) |
| Touchscreen | Capacitive / PCAP / Multitouch |
| Processor | Intel® Core™ i5-1135G7 4/8 2.4GHz |
| Installed RAM | 16 GB |
| Maximum RAM | 32 GB |
| Storage type | SSD |
| Installed storage capacity | 256 GB |
| RAID 1 | No |
| Expansion slots | M.2 / MiniPCIe |
| Ethernet ports | 2 |
| 10/100 Ethernet ports | 0 |
| Gigabit Ethernet ports | 2 |
| 2.5 Gigabit Ethernet ports | 0 |
| 10 Gigabit Ethernet ports | 0 |
| PoE ports | 0 |
| Wi-Fi | Optional |
| Display outputs | 1 |
| Display interfaces | HDMI |
| Serial ports | 4 |
| RS-232 capable ports | 4 |
| RS-422 capable ports | 2 |
| RS-485 capable ports | 2 |
| USB 2.0 | 1 |
| USB 3.2 Gen 1 | 0 |
| USB 3.2 Gen 2 Type-A | 4 |
| USB 3.2 Gen 2 Type-C | 0 |
| USB 3.2 Gen 2×2 Type-C | 0 |
| Additional features | 0 |
| Digital I/O | 0 |
| Operating system options | Windows 11 / Linux |
| Windows 11 compatibility | Yes |
| IP protection | None |
| Front IP protection | None |
| Power supply | None |
| Power supply rating | 0 W |
| Power connector | Terminal Block |
| Input voltage | 9V-36V DC |
| Operating temperature | 0°C- +50°C |
| Installation | VESA 75 / VESA 100 / Panel mount |
| Width | 380 mm |
| Depth | 56 mm |
| Height | 315 mm |
| Material | Aluminium |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
