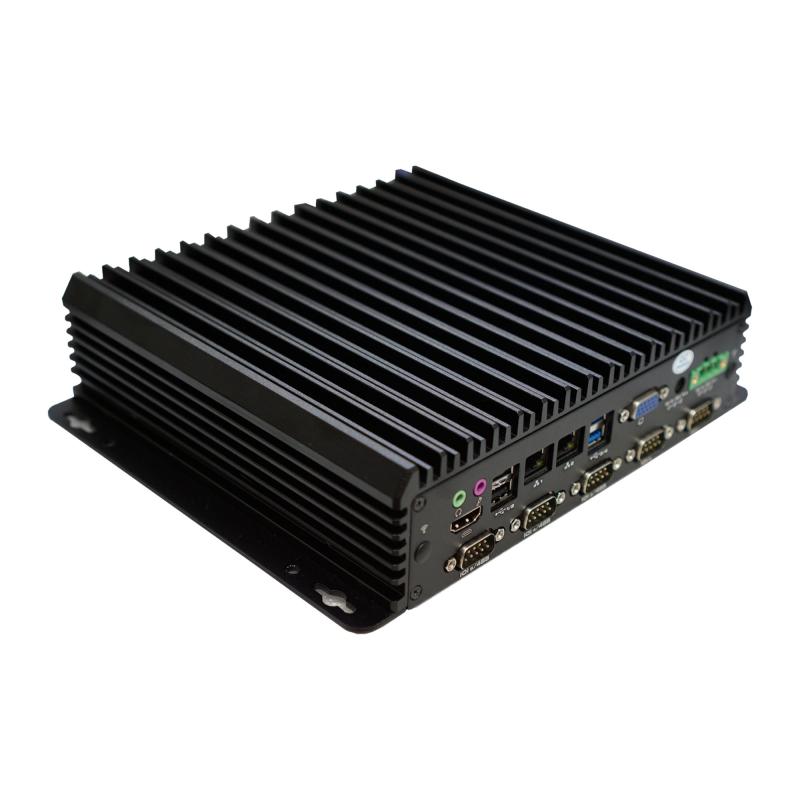

Platform image; Z7 branding may differ.Z7
Z7 Compact C2686 · Intel® Core™ i5-1135G7 4/8 2.4GHz / 16 GB / 256 GB SSD
Industrial box PC
Catalogue part number: Z7-C-9EH6851
Z7 Compact C2686 — industrial box pc. Listed configuration: Intel® Core™ i5-1135G7 4/8 2.4GHz, 16 GB, 256 GB SSD. Fanless cooling. Input voltage: 9V-36V DC. Operating temperature: -10°C - 60°C. Mounting: Wall mount. Operating system options: Windows Linux. Confirm the required OS and licence in your quotation. Final configuration, included accessories and lead time are confirmed before order acceptance.
€1,166.54
Excl. VAT / pc
Available to order
Z7 configuration and branding prepared to order. Lead time and dispatch date confirmed with your quotation.
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Z7 |
|---|---|
| Part number | Z7-C-9EH6851 |
| Condition | New |
| Catalogue part number | Z7-C-9EH6851 |
| Z7 model | C2686 |
| Product type | Industrial box PC |
| Fanless | Yes |
| Processor | Intel® Core™ i5-1135G7 4/8 2.4GHz |
| Installed RAM | 16 GB |
| Maximum RAM | 64 GB |
| Storage type | SSD |
| Installed storage capacity | 256 GB |
| RAID 1 | No |
| Expansion slots | MiniPCIe / SIM slot |
| Ethernet ports | 2 |
| Gigabit Ethernet ports | 2 |
| 2.5 Gigabit Ethernet ports | 0 |
| 10 Gigabit Ethernet ports | 0 |
| PoE ports | 0 |
| Wi-Fi | Optional |
| Display outputs | 2 |
| Display interfaces | VGA / HDMI |
| AI accelerator option | No |
| Serial ports | 5 |
| RS-232 capable ports | 5 |
| RS-422 capable ports | 0 |
| RS-485 capable ports | 3 |
| USB 2.0 | 3 |
| USB 3.2 Gen 1 (USB 3.0) | 5 |
| USB 3.2 Gen 2 Type-A | 0 |
| USB 3.2 Gen 2 Type-C | 0 |
| USB 3.2 Gen 2×2 Type-C | 0 |
| Digital I/O | 8 |
| Windows 11 compatibility | Yes |
| Operating system options | Windows Linux |
| IP protection | None |
| Platform certifications | FCC |
| Power supply | External |
| Power supply rating | 60 W |
| Power connector | Barrel connector |
| Input voltage | 9V-36V DC |
| Operating temperature | -10°C - 60°C |
| Mounting | Wall mount |
| Width | 205 mm |
| Depth | 207 mm |
| Height | 57 mm |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
