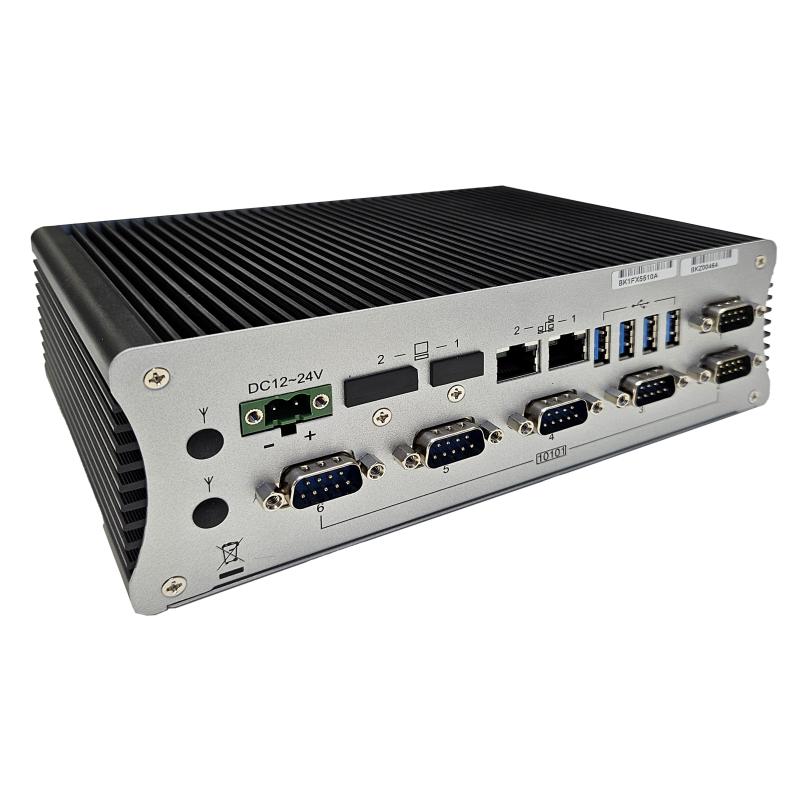

Platform image; Z7 branding may differ.Z7
Z7 Compact C2804 · Intel® Celeron® 4305UE 2.0GHz / 4 GB / 128 GB SSD
Industrial box PC
Catalogue part number: Z7-C-9EF5510
Z7 Compact C2804 — industrial box pc. Listed configuration: Intel® Celeron® 4305UE 2.0GHz, 4 GB, 128 GB SSD. Fanless cooling. Input voltage: 12V - 24V. Operating temperature: 0°C - 50° C. Mounting: VESA / Wall mount / DIN rail (optional). Operating system options: Windows Linux. Confirm the required OS and licence in your quotation. Final configuration, included accessories and lead time are confirmed before order acceptance.
€874.54
Excl. VAT / pc
Available to order
Z7 configuration and branding prepared to order. Lead time and dispatch date confirmed with your quotation.
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Z7 |
|---|---|
| Part number | Z7-C-9EF5510 |
| Condition | New |
| Catalogue part number | Z7-C-9EF5510 |
| Z7 model | C2804 |
| Product type | Industrial box PC |
| Fanless | Yes |
| Processor | Intel® Celeron® 4305UE 2.0GHz |
| Installed RAM | 4 GB |
| Maximum RAM | 32 GB |
| Storage type | SSD |
| Installed storage capacity | 128 GB |
| RAID 1 | Yes |
| Expansion slots | M.2 / MiniPCIe / SIM slot |
| Ethernet ports | 2 |
| Gigabit Ethernet ports | 2 |
| 2.5 Gigabit Ethernet ports | 0 |
| 10 Gigabit Ethernet ports | 0 |
| PoE ports | 0 |
| Wi-Fi | Optional |
| Display outputs | 2 |
| Display interfaces | HDMI / Displayport |
| AI accelerator option | No |
| Serial ports | 6 |
| RS-232 capable ports | 6 |
| RS-422 capable ports | 2 |
| RS-485 capable ports | 2 |
| CAN bus ports | 0 |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 Type-A | 0 |
| USB 3.2 Gen 2 Type-C | 0 |
| USB 3.2 Gen 2×2 Type-C | 0 |
| Digital I/O | 0 |
| Additional features | 0 |
| Windows 11 compatibility | Yes |
| Operating system options | Windows Linux |
| IP protection | None |
| Platform certifications | FCC |
| Power supply | External |
| Power supply rating | 60 W |
| Power connector | Barrel connector |
| Input voltage | 12V - 24V |
| Operating temperature | 0°C - 50° C |
| Mounting | VESA / Wall mount / DIN rail (optional) |
| Width | 204 mm |
| Depth | 140 mm |
| Height | 67 mm |
