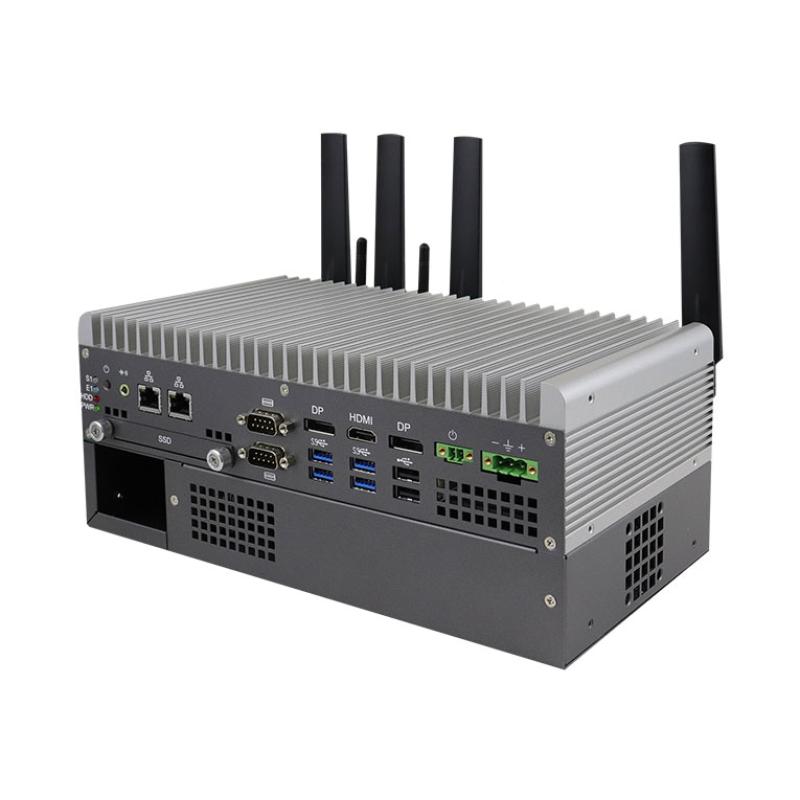

Platform image; Z7 branding may differ.Z7
Z7 Compact C3614A · Intel® Core™ i7-10700TE 8/16 2,0 GHz / 16 GB / 256 GB SSD
Industrial box PC
Catalogue part number: Z7-C-9EB3127
Z7 Compact C3614A — industrial box pc. Listed configuration: Intel® Core™ i7-10700TE 8/16 2,0 GHz, 16 GB, 256 GB SSD. Fanless cooling. Input voltage: 24V DC. Operating temperature: -10°C - 60°C. Mounting: Wall mount / DIN rail (optional). Operating system options: Windows Linux. Confirm the required OS and licence in your quotation. Final configuration, included accessories and lead time are confirmed before order acceptance.
€2,042.54
Excl. VAT / pc
Available to order
Z7 configuration and branding prepared to order. Lead time and dispatch date confirmed with your quotation.
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-11. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Z7 |
|---|---|
| Part number | Z7-C-9EB3127 |
| Condition | New |
| Catalogue part number | Z7-C-9EB3127 |
| Z7 model | C3614A |
| Product type | Industrial box PC |
| Fanless | Yes |
| Processor | Intel® Core™ i7-10700TE 8/16 2,0 GHz |
| Installed RAM | 16 GB |
| Maximum RAM | 64 GB |
| Storage type | SSD |
| Installed storage capacity | 256 GB |
| RAID 1 | No |
| Expansion slots | PCIe x4 / PCIe x8 / M.2 |
| Ethernet ports | 2 |
| 10/100 Ethernet ports | 0 |
| Gigabit Ethernet ports | 0 |
| 2.5 Gigabit Ethernet ports | 2 |
| 10 Gigabit Ethernet ports | 0 |
| PoE ports | 0 |
| Wi-Fi | Optional |
| Display outputs | 3 |
| Display interfaces | HDMI / Displayport |
| AI accelerator option | No |
| Serial ports | 2 |
| RS-232 capable ports | 2 |
| RS-422 capable ports | 1 |
| RS-485 capable ports | 1 |
| CAN bus ports | 0 |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 Type-A | 0 |
| USB 3.2 Gen 2 Type-C | 0 |
| USB 3.2 Gen 2×2 Type-C | 0 |
| Digital I/O | 0 |
| Additional features | PCI-E (x8) PCI-E (x4) TPM 2.0 |
| Windows 11 compatibility | Yes |
| Operating system options | Windows Linux |
| IP protection | None |
| Platform certifications | FCC |
| Power supply | None |
| Power supply rating | 0 W |
| Power connector | Terminal Block |
| Input voltage | 24V DC |
| Operating temperature | -10°C - 60°C |
| Mounting | Wall mount / DIN rail (optional) |
| Width | 275 mm |
| Depth | 140 mm |
| Height | 117 mm |
