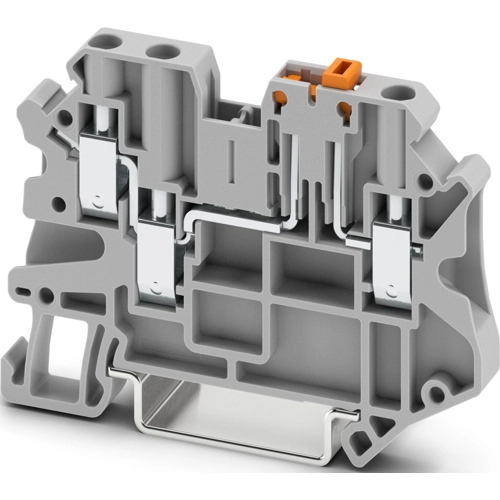

Series image. Check the exact part number.Phoenix Contact
Phoenix Contact 3046003
Knife disconnect terminal, screw connection, 0.14-6.0 mm², 3 pole, 20 A, 6 kV, gray, 3046003
Manufacturer part number: 3046003
Knife disconnect terminal by Phoenix Contact. Manufacturer part number 3046003.
€9.14
Excl. VAT / pc
40 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Part number | 3046003 |
| Condition | New |
| Version | knife disconnect terminal |
| Pin number | 3 pole |
| Cable cross-section | 0.14-6.0 mm² |
| AWG cross-section | AWG 26 to 10 |
| Rated surge voltage | 6 kV |
| Rated current | 20 A |
| Rated Voltage | 500 V |
| Degree of soiling | 3 |
| Width | 6.2 mm |
| Height | 65.4 mm |
| Connection | screw connection |
| Colour | gray |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
