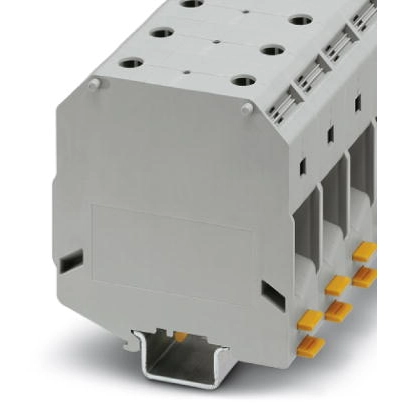

Series image. Check the exact part number.Phoenix Contact
Phoenix Contact 3247419
High current terminal, screw connection, 25-95 mm², 2 pole, 232 A, 8 kV, gray, 3247419
Manufacturer part number: 3247419
High current terminal by Phoenix Contact. Manufacturer part number 3247419.
€48.20
Excl. VAT / pc
2 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Part number | 3247419 |
| Condition | New |
| Version | high current terminal |
| Number of terminals | 2 |
| Pin number | 2 pole |
| Cable cross-section | 25-95 mm² |
| AWG cross-section | AWG 4 to 3/0 |
| Rated surge voltage | 8 kV |
| Rated current | 232 A |
| Rated Voltage | 1500 V |
| Degree of soiling | 3 |
| Length | 85.5 mm |
| Width | 25 mm |
| Height | 90 mm |
| Connection | screw connection |
| Colour | gray |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
