Phoenix Contact 3042722

Name: Phoenix Contact 3042722
Brand: Phoenix Contact
SKU: bk-60p4722

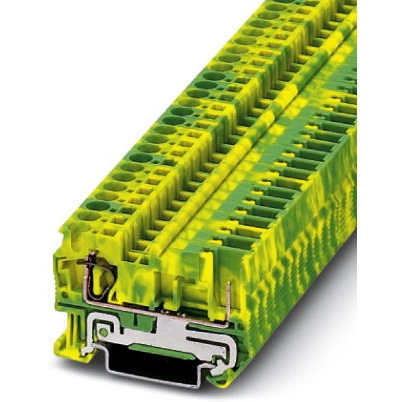

Protective conductor terminal, spring-cage/plug-in connection, 0.08-6.0 mm², 2 pole, 6 kV, yellow/green, 3042722

Manufacturer part number: 3042722

Protective conductor terminal by Phoenix Contact. Manufacturer part number 3042722.

Datasheet · PDF ↗

€8.49

Excl. VAT / pc

49 pc · supplier stock

Delivery confirmed before order acceptance

Quantity, pc

New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.

Specifications

Manufacturer	Phoenix Contact
Part number	3042722
Condition	New
Version	protective conductor terminal
Number of terminals	2
Pin number	2 pole
Cable cross-section	0.08-6.0 mm²
AWG cross-section	AWG 28 to 10
Rated surge voltage	6 kV
Degree of soiling	3
Length	55.8 mm
Width	6.2 mm
Height	36.5 mm
Connection	spring-cage/plug-in connection
Colour	yellow/green

Documentation

Declaration of Conformity - EN Declaration of Conformity ↗Technical Data Sheet - EN Technical Data Sheet ↗DID – Dimension drawing - EN/DE DID – Dimension drawing ↗

Request a quotation

Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
