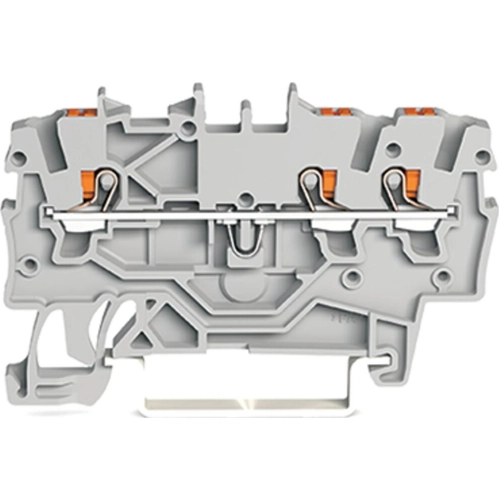

Series image. Check the exact part number.WAGO
WAGO 2200-1301
3-wire feed-through terminal, spring-clamp connection, 0.14-1.5 mm², 1 pole, 13.5 A, 8 kV, gray, 2200-1301
Manufacturer part number: 2200-1301
3-wire feed-through terminal by WAGO. Manufacturer part number 2200-1301.
€3.38
Excl. VAT / pc
90 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | WAGO |
|---|---|
| Part number | 2200-1301 |
| Condition | New |
| Version | 3-wire feed-through terminal |
| Number of terminals | 3 |
| Pin number | 1 pole |
| Cable cross-section | 0.14-1.5 mm² |
| AWG cross-section | AWG 24 to 16 |
| Rated surge voltage | 8 kV |
| Rated current | 13.5 A |
| Rated Voltage | 800 V |
| Degree of soiling | 3 |
| Length | 39.5 mm |
| Width | 3.5 mm |
| Height | 58.2 mm |
| Connection | spring-clamp connection |
| Colour | gray |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
