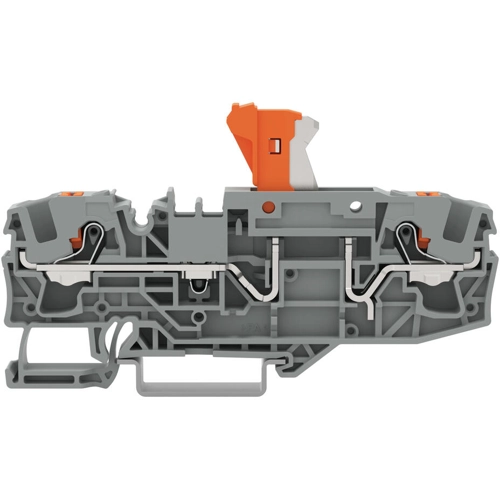

Series image. Check the exact part number.WAGO
WAGO 2206-1673
2-wire disconnect terminal block, spring-clamp connection, 0.5-10 mm², 1 pole, 30 A, 8 kV, red, 2206-1673
Manufacturer part number: 2206-1673
2-wire disconnect terminal block by WAGO. Manufacturer part number 2206-1673.
€14.91
Excl. VAT / pc
23 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | WAGO |
|---|---|
| Part number | 2206-1673 |
| Condition | New |
| Version | 2-wire disconnect terminal block |
| Number of terminals | 2 |
| Pin number | 1 pole |
| Cable cross-section | 0.5-10 mm² |
| AWG cross-section | AWG 20 to 8 |
| Rated surge voltage | 8 kV |
| Rated current | 30 A |
| Rated Voltage | 500 V |
| Degree of soiling | 3 |
| Width | 7.5 mm |
| Height | 96.3 mm |
| Connection | spring-clamp connection |
| Colour | red |
