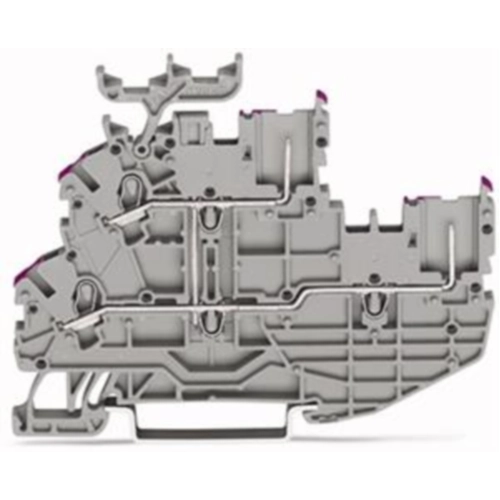

Series image. Check the exact part number.WAGO
WAGO 2020-2208
2-wire/2-pin double level terminal, spring-clamp connection, 0.14-1.5 mm², 1 pole, 13.5 A, 6 kV, gray, 2020-2208
Manufacturer part number: 2020-2208
2-wire/2-pin double level terminal by WAGO. Manufacturer part number 2020-2208.
€3.66
Excl. VAT / pc
31 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | WAGO |
|---|---|
| Part number | 2020-2208 |
| Condition | New |
| Version | 2-wire/2-pin double level terminal |
| Number of terminals | 2 |
| Pin number | 1 pole |
| Cable cross-section | 0.14-1.5 mm² |
| AWG cross-section | AWG 24 to 16 |
| Rated surge voltage | 6 kV |
| Rated current | 13.5 A |
| Rated Voltage | 500 V |
| Degree of soiling | 3 |
| Length | 51.3 mm |
| Width | 3.5 mm |
| Height | 80.1 mm |
| Connection | spring-clamp connection |
| Colour | gray |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
