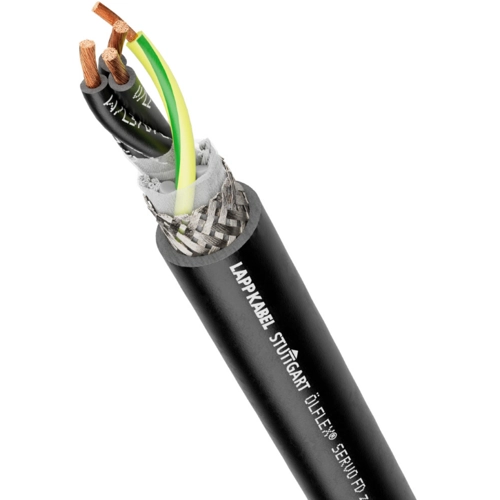

Series image. Check the exact part number.LAPP
LAPP 1023471
PUR motor connection cable ÖLFLEX SERVO FD zeroCM 3 G 2.5 mm², AWG 14, shielded, black, 1023471
Manufacturer part number: 1023471
PUR motor connection cable ÖLFLEX SERVO FD zeroCM 3 G 2.5 mm² by LAPP. Manufacturer part number 1023471.
€17.77
Excl. VAT / m
30 m · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 m; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | LAPP |
|---|---|
| Part number | 1023471 |
| Condition | New |
| Product type | motor connection cable |
| Number of cores | 3 |
| Cable cross-section | 2.5 mm² |
| AWG cross-section | AWG 14 |
| Colour | black |
| Material | PUR |
| Outer diameter | 14.8 mm |
| Shielding | shielded |
| Halogen free | Yes |
| Protective conductor available | Yes |
| Cable material | copper, bright |
| Conductor category | CL.6 = finest stranded |
| Core insulation material | polypropylene |
| Core colour sequence | black |
| Rated voltage | 1 kV |
| Rated voltage U0 | 600 V |
| Rated voltage UL/CSA | 1000 V |
| Temperature range (unmoved) | -50 °C to 90 °C |
| Temperature range (active) | -40 °C to 90 °C |
| Test voltage | 4 kV |
