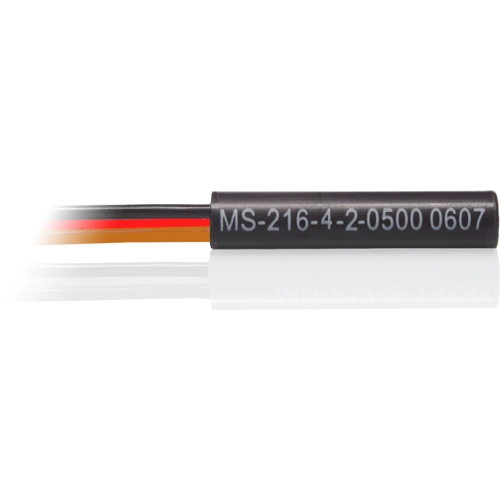

Series image. Check the exact part number.PIC GmbH
PIC GmbH MS-216-4-1-0500
Reed switche, magnet, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, MS-216-4-1-0500
Manufacturer part number: MS-216-4-1-0500
Magnet by PIC GmbH. Manufacturer part number MS-216-4-1-0500.
€3.86
Excl. VAT / pc
350 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | PIC GmbH |
|---|---|
| Part number | MS-216-4-1-0500 |
| Condition | New |
| Product type | reed sensor |
| Version | magnet |
| Latching switching function | 1 Form C (NO/NC) |
| Breaking capacity | 5 W |
| Switching Voltage (DC) | 175 V |
| Switching Voltage (AC) | 120 V |
| switching current | 0.25 A |
| Contact resistance | 200 mΩ |
| Connection | stranded wires |
| diameter | 5.6 mm |
| Length | 25.2 mm |
