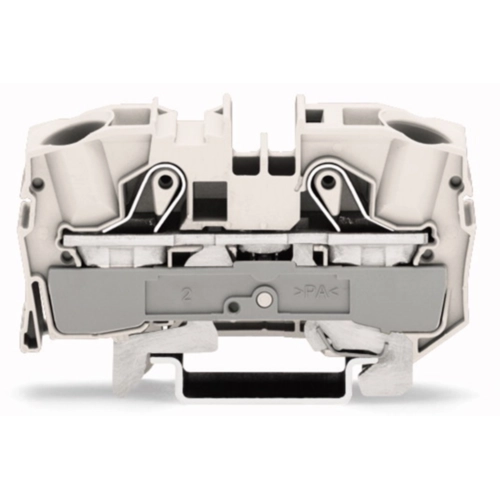

Series image. Check the exact part number.WAGO
WAGO 2016-1208
2-wire shield wire terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 76 A, 8 kV, white, 2016-1208
Manufacturer part number: 2016-1208
2-wire shield wire terminal by WAGO. Manufacturer part number 2016-1208.
€9.28
Excl. VAT / pc
2 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | WAGO |
|---|---|
| Part number | 2016-1208 |
| Condition | New |
| Version | 2-wire shield wire terminal |
| Number of terminals | 2 |
| Pin number | 1 pole |
| Cable cross-section | 0.5-16 mm² |
| AWG cross-section | AWG 20 to 6 |
| Rated surge voltage | 8 kV |
| Rated current | 76 A |
| Rated Voltage | 800 V |
| Degree of soiling | 3 |
| Length | 36.9 mm |
| Width | 12 mm |
| Height | 69.8 mm |
| Connection | spring-clamp connection |
| Colour | white |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
