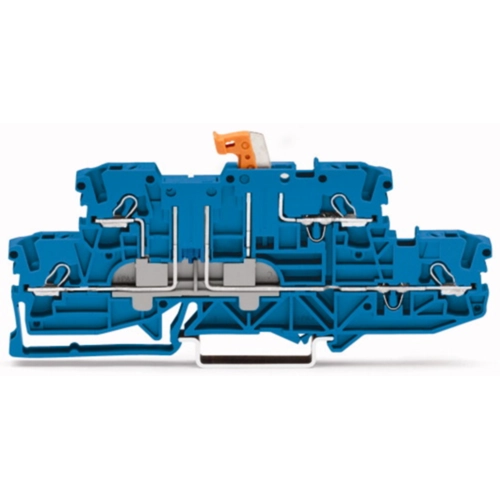

Series image. Check the exact part number.WAGO
WAGO 2002-2974
Double level disconnect terminal, spring-clamp connection, 0.25-4.0 mm², 4 pole, 16 A, 6 kV, blue, 2002-2974
Manufacturer part number: 2002-2974
Double level disconnect terminal by WAGO. Manufacturer part number 2002-2974.
€12.24
Excl. VAT / pc
49 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | WAGO |
|---|---|
| Part number | 2002-2974 |
| Condition | New |
| Version | double level disconnect terminal |
| Number of terminals | 2 |
| Pin number | 4 pole |
| Cable cross-section | 0.25-4.0 mm² |
| AWG cross-section | AWG 22 to 12 |
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
| Rated Voltage | 400 V |
| Degree of soiling | 3 |
| Length | 42 mm |
| Width | 5.2 mm |
| Height | 108 mm |
| Connection | spring-clamp connection |
| Colour | blue |
Documentation
