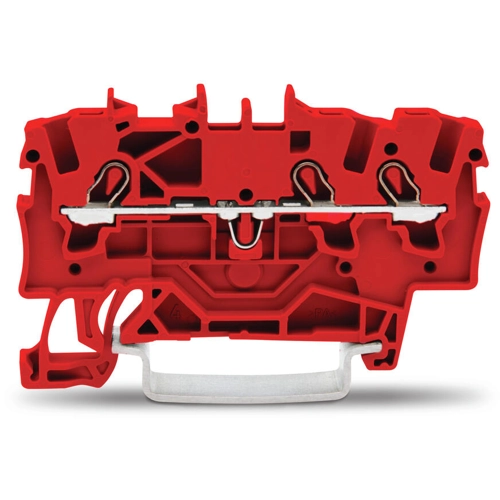

Series image. Check the exact part number.WAGO
WAGO 2001-1303
3-wire feed-through terminal, spring-clamp connection, 0.25-2.5 mm², 1 pole, 18 A, 8 kV, red, 2001-1303
Manufacturer part number: 2001-1303
3-wire feed-through terminal by WAGO. Manufacturer part number 2001-1303.
€1.78
Excl. VAT / pc
89 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 1 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | WAGO |
|---|---|
| Part number | 2001-1303 |
| Condition | New |
| Version | 3-wire feed-through terminal |
| Number of terminals | 3 |
| Pin number | 1 pole |
| Cable cross-section | 0.25-2.5 mm² |
| AWG cross-section | AWG 22 to 14 |
| Rated surge voltage | 8 kV |
| Rated current | 18 A |
| Rated Voltage | 800 V |
| Degree of soiling | 3 |
| Length | 32.9 mm |
| Width | 4.2 mm |
| Height | 59.2 mm |
| Connection | spring-clamp connection |
| Colour | red |
