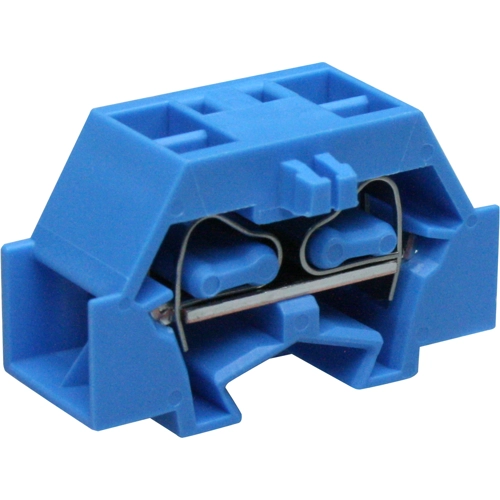

Series image. Check the exact part number.WAGO
WAGO 261-334
4-wire terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, 6 kV, blue, 261-334
Manufacturer part number: 261-334
4-wire terminal by WAGO. Manufacturer part number 261-334.
€1.01
Excl. VAT / pc
540 pc · supplier stock
Delivery confirmed before order acceptance
New condition. Minimum 10 pc; increments of 1.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Availability checked 2026-10-06. Final price, stock, delivery and taxes are confirmed before order acceptance.
Specifications
| Manufacturer | WAGO |
|---|---|
| Part number | 261-334 |
| Condition | New |
| Version | 4-wire terminal |
| Number of terminals | 4 |
| Pin number | 1 pole |
| Cable cross-section | 0.08-2.5 mm² |
| AWG cross-section | AWG 28 to 14 |
| Rated surge voltage | 6 kV |
| Rated current | 24 A |
| Rated Voltage | 500 V |
| Degree of soiling | 3 |
| Length | 28.1 mm |
| Width | 10 mm |
| Height | 18.1 mm |
| Connection | spring-clamp connection |
| Colour | blue |
Documentation
Request a quotation
Send the part number, quantity and destination country. We will confirm availability, final price and delivery.
